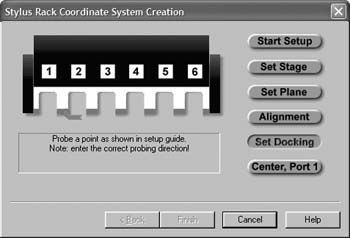

Next you will capture one data point on the front surface of the bay as shown below.
When the Bay Depth has been established, the setup will advance to step 10 automatically. Return to Step 8, advance to Step 10.
When the Bay Depth has been established, the setup will advance to step 10 automatically.
Return to Step 8, advance to Step 10.
Related Procedures:
Stylus Manager, Choosing a Stylus, Stylus db Manager, Stylus Edit Control, Stylus Rack Setup
