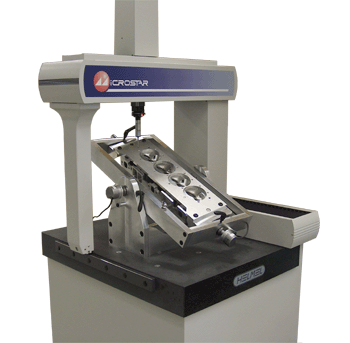

The U/V Rotary Table is designed to integrate with DCC style CMMs adding
the capability to measure an artifact on all sides, and all access
directions while maintaining single part coordinate system integrity.
By maintaining coordinate system integrity, all measured features,
scanned data clouds and constructed geometry retain their position integrity
eliminating the need to establish multiple coordinate systems and casting
features between coordinate systems.
The U/V Rotary Table is manual in its operation and requires the operator
to position the table to various positions. The supplied locks keep the
table in position.
The rotary table requires a one-time setup procedure that identifies the
individual axis of rotation. The Geomet CMM software contains the
necessary tools to guide the operator through the setup process.
Once the setup has been completed, Geomet retains the axis parametric
data in it's System Options for retrieval after system restarts. The setup
data is valid as long as the U/V table has not been moved. If the table has
been moved, repeat the setup procedure.
